Station wagons tracking
Introduction:Vehicle Tracking device with SOS button for Emergency Calling & Voice Monitoring your vehicle’s engine * Govern/Control speed and movement for Car Rental.
☆ Double mode positioning of GPS
☆ Real-time management of mobile APP
☆ Electronic fence
☆ Track replay
☆ Fully sealed waterproof
☆ Ultra-wide electric frequency
☆ Ultra-low power consumption
The main functions of YB01：
1. Real-Time tracking by Android&IOS APP, and PC also.
2. Do the Master setting
YB01 Technical parameters:
4）.Working Current：≈22mA (12vDC)
5）.Working Current：≈12mA (24vDC)
6）.GPS Fixed Time：Cold start≈38s（Open sky）
7）.GPS Precision：10m（2D RM）
10）.Measurement：54.8 L×33.6 W×18 H (mm)
USE:Car tracker,Motorbike tracker,Electric motorbike tracker,Fleet tracker
Station Wwagons Tracking
GPS Tracking YB01 Main Functions:
CUT OFF/RESUME CAR ENGINE
ACC ON (OR) OFF MONITORING
OVER SPEED ALERT
Also,by using the vehicle GPS tracker,we can see where they are and which direction they are going to so that we can ensure their safeties.
Vehicle Rental Company:
Car lending and tickets receiving…
Fake certifications mortgage,do not return car,hit and run
Vehicle fleet management

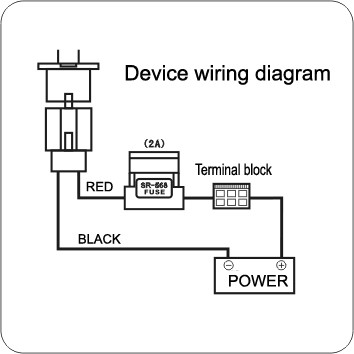

YB01 Device connecting requirements:
The device power supply is DC 9-90V. The red line is positive pole while the black line is negative pole.
The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
When finishing the power supply wire connection, please make the plug of power supply to the device.
Please read the instructions in detail；
Product check, check whether the terminal type is correct, complete accessories?
Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder (as follows).
