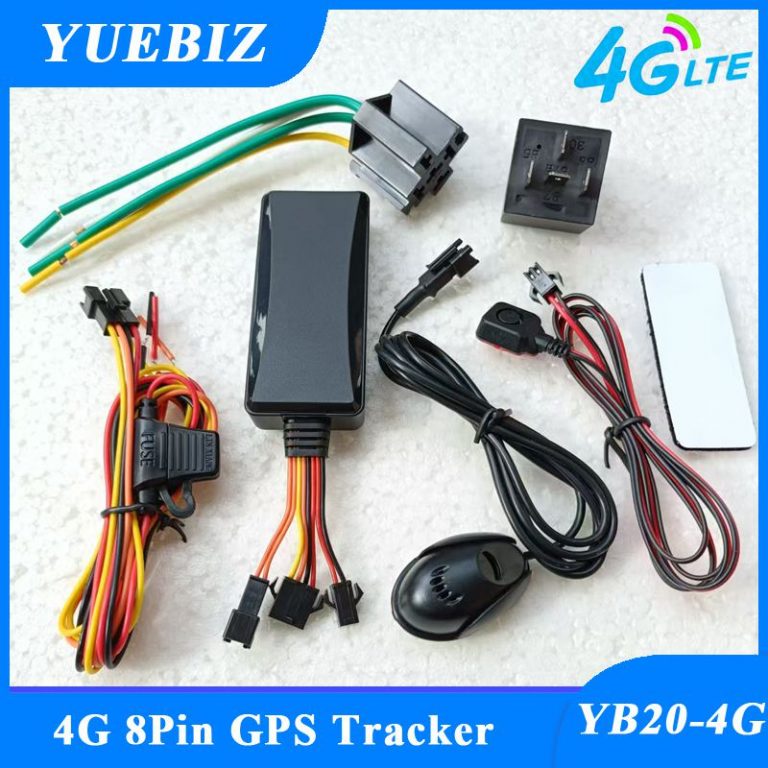

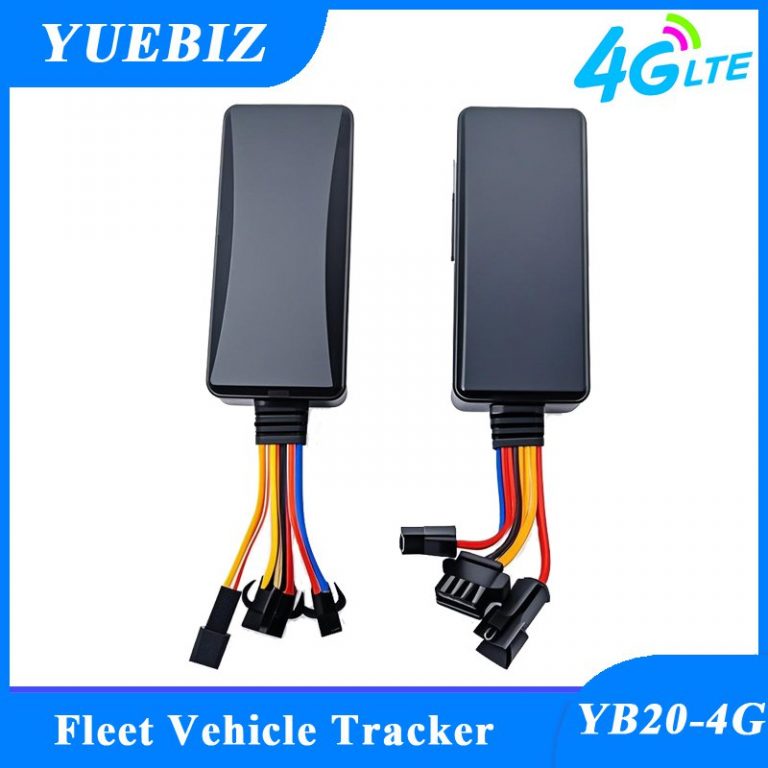

Wholesale YB20 4G 8pin GPS Fleet Vehicle Tracker Car Rental Service
Model: YB20-4G
Size: 80(L)mm*39(W)mm*17(H)mm
Weight: 68g
Introduction: The YB20-4G 8Pin GPS Tracker is a powerful tracker with many applications, such as automotive finance, car rental services, bus management, and comprehensive fleet management, making it a valuable asset in the modern automotive industry.
YB20 - 4G 8Pin GPS Tracker For Fleet Vehicle
YB20 – 4G 8Pin is a sophisticated tracking device that seamlessly integrates into various automotive sectors, including 4S car dealerships, logistics, personal vehicle management, and truck fleet management. This tracker offers real-time tracking for up-to-the-minute vehicle location, complemented by history playback for retrospective route and usage analysis.
It enhances vehicle security through a remote cut-off feature, allowing for the deactivation of the vehicle’s power system in case of theft. The device’s ACC detection capability alerts users to ignition status changes, adding an extra layer of security.
YB20 4G GPS Vehicle Tracker Advantages:
* Remotely stop and start your vehicle’s engine
* Govern/Control speed and movement.
Main Functions:

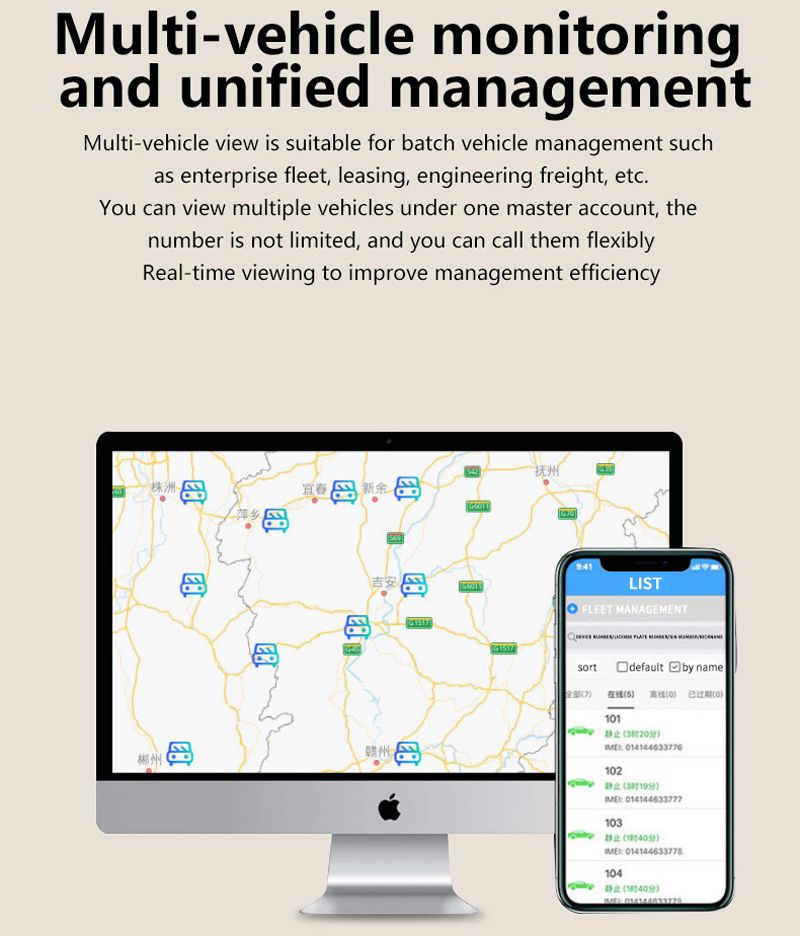

* Real-time tracking by Android and iOS APP, and PC also.
* Cut off oil& electric function
* Over-speed/Vibration/Low battery/ Cut off alarm
Specification:
Dimension: 80*39*17 mm Positioning Accuracy:＜5m
Weight: 68 g ( Includes Battery )
Built-in Battery:140mAH（Options with battery）
Working Voltage: 9- 95V DC
Working Temperature: – 20°C to + 60°C
Storage Temperature:- 20°C to + 70°C
Bands:LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66
GSM 850/900/1800/1900MHz
GSM Module Brand / Chip Model: SIMCOM7670SA
GPS Chipset: ASR1603
Root Mean Square Error: S Degree
Package: 50pcs/carton Size:46*28.5*32cm Weight:10KG
H.S. Code for Customs: 8526911000
The YB20-4G 8Pin GPS Tracker is a powerful tracker with many applications, such as automotive finance, car rental services, bus management, and comprehensive fleet management, making it a valuable asset in the modern automotive industry.
YB20 4G 8Pin is a sophisticated tracking device that integrates into various automotive sectors, including 4S car dealerships, logistics, personal vehicle management, and truck fleet management.
Car Rental GPS
4G 8pin GPS device
GPS with voice monitoring,GPS with speed control
Phone Tracking:
Please download our phone APP(YI Tracker) for IOS/Android system according to the instruction handbook after you bought trackers.
Tracking Car’s Trails By Phone:
Tracking Car’s Trails isn’t a dream.
We developed the APP for using smart phone to track the car. All you need to do is download and install the APP to your phone, and then you can track your car immediately.
Replaying Car’s Historical Route:
The historical moving route of the latest 3 months of the tracker can be replayed on our Android/IOS tracking APP(YI Tracker) or Webpage(https://www.yuegps.com) tracking platform.
PRODUCT SPECIFICATIONS
|
Specifications |
Parameters |
|
Dimensions |
80*39*17 mm |
|
Weight |
68g ( Includes Battery ) |
|
Built-in Battery |
140mAH（Options with battery） |
|
Working Voltage |
9-95V DC |
|
Working Temperature Storage Temperature |
– 20°C to + 60°C – 20°C to + 70°C |
|
Sensor |
Precision Vibration Sensor |
|
Bands |
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900MHz |
|
GSM Module Brand / Chip Model |
SIMCOM7670SA |
|
Root Mean Square Error |
S Degree |
|
Output Power Max
|
EGSM900:33dBm±2dB/5dBm±5dB DCS1800:30dBm±2dB/0dBm±5dB EGSM900 (8-PSK)：27dBm±3dB/5dBm±5dB DCS1800 (8-PSK)：26dBm±3dB/0dBm±5dB WCDMA B1/B5/B8：24dBm+1/-3dB/<-49dBm LTE-FDD B1/B3/B5/B8：23dBm±2dB/<-39dBm LTE-TDD B34/B38/B39/B40/B41： 23dBm±2dB/<-39dBm |
|
Dynamic Output Range |
-15~-108dbm |
|
Receiving Sensitivity |
-107dbm |
|
Maximum Frequency Error |
±0.1ppm |
|
Sensitivity
|
Cold Start：-145 dbm Hot Start：-156 dbm Warm Start：-145 dbm Navigation：-160 dbm Tracking：-162 dbm |
|
Positioning Accuracy |
＜5m |
|
First Positioning Time |
Cold Start：Average 32s |
|
GSM Antenna |
Built-in |
|
LED Indicator |
Power Indicator,Status Indicator |
|
Transfer Protoco |
TCP |
|
Power Detection |
Upload alarm data while main power is disconnected |
|
Data Reporting |
Update GPS data in real time and support customer customization |
|

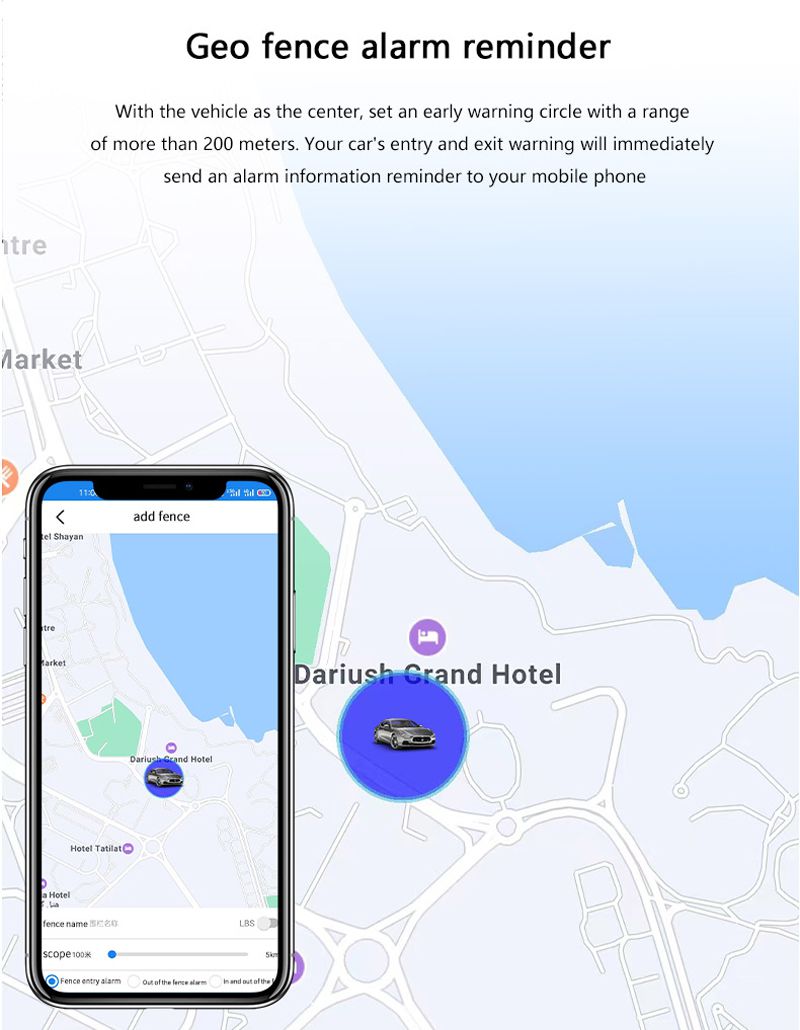

Geo-Fence |
TBD |
|
Driving Behavior Detection |
When the vehicle speed exceeds the set speedupload over speed alarm |
|
GPS Data |
Real-time location update |
|
Vibration Alarm
|
Vehicle vibration report in fortified state
|
