Newest 3G WCDMA GPS Car/Truck Tracker GT06E With Oil Tracking- YB09

Product name : Newest 3G WCDMA GPS Car/Truck Tracker GT06E With Oil Tracking
Category :  Vehicle GPS Tracker
Product No. : YB09
Online Inquiry         Email Us

Quick Details

  • Type: Gps Tracker
  • Use: Automotive
  • Screen Size: no screen
  • Function: tracking & fleet management
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YUEBIZ
  • Model Number: YB09
  • Warranty: 12 Months
  • WCDMA: 850/900/1900/2100 MHz
  • GSM: 850 / 900 / 1800 / 1900 MHz Quad-band
  • GPS Chip: MTK high sensitivity GPS chip
  • Location Accuracy: <10 meters
  • Monitoring Scope: ≤ 5M
  • Antenna: Built-in GPS ceramic antenna; GSM quad-ban antenna
  • Operating Voltage: 9-36VDC
  • Standby: 4 hours
  • Dimension: 98(L) *52.0 (W) *15.0 (H) mm
  • Weight: 80g


Packaging Details Dimentions:98(L) *52.0 (W) *15.0 (H) mm

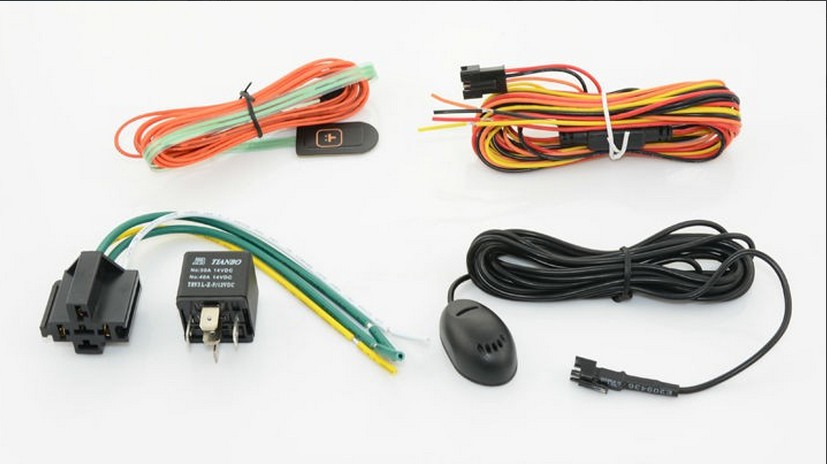

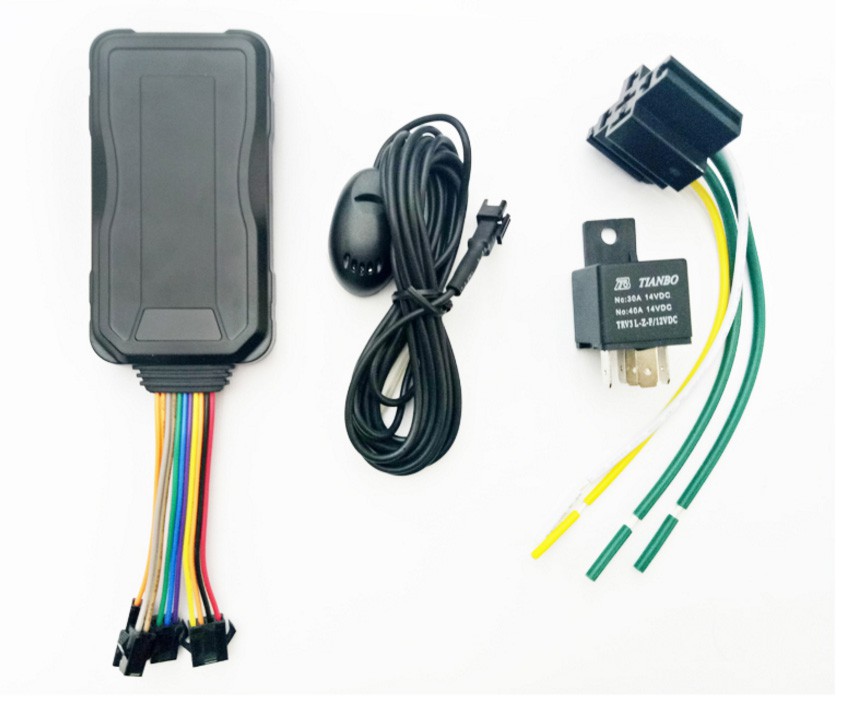

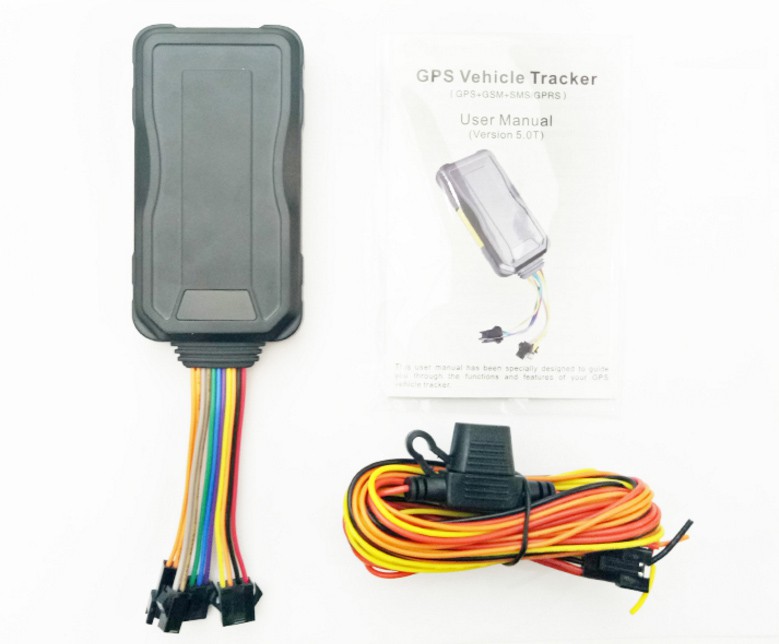

Stardard Accessories:
Power cables,Relay,Microphone, SOS alarm button,(built in battery 450mAh)
Delivery Time within 3 days
vehicle tracker
vehicle tracking
vehicle tracking system
car tracking system
gps fleet management
Cargo tracking device
GPS locator tracking device
gps vehicle tracking system
gps trailer tracking
online gps tracking
gps tracking chips

YB09 Feature list:

GSM 850 / 900 / 1800 / 1900 MHz Quad-band

WCDMA 850/900/1900/2100 MHz

WCDMA+EDGE+GPRS wireless network

Real time position & tracking

SOS alarm

Geo-fence alarm

Mileage calculator

Air update

Analogue/ Digital input

Output control

Remote Tele-cut off (petrol / electricity) function

Support ACC detection, real-time reporting car status

Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm

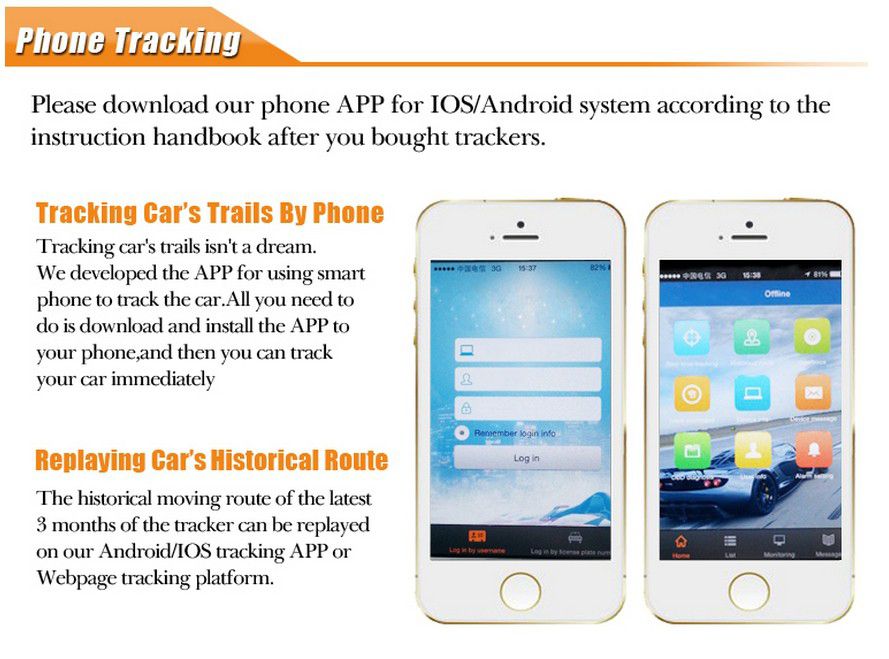

Multi ways to query position: SMS,APP ,Internet

Hardware Specification

Communication System



WCDMA 850/900/1900/2100MHz

GSM 850/900/1800/1900MHz



Output Power

Class 3 (24dBm +1/-3dB) for UMTS bands

Class 4 (33dBm ±2dB) for GSM 850/900MHz

Class 1 (30dBm ±2dB) for GSM 1800/1900MHz

Receive Sensitivity

-110dBm/UMTS Bands

-106dBm/GSM 900MHz,GSM 1800MHz


GPS Chip

MTK high sensitivity GPS chip


L1,1575.42MHz C/A code



Location Accuracy

<10 meters

Tracking Sensitivity

 - 165dBm

Acquisition Sensitivity

 - 148dBm

Location time

Hot start:≤2sec(open sky)

Cold start:≤35sec(open sky)

Main Specifications

Monitoring Scope

≤ 5M


Built-in GPS ceramic antenna; GSM quad-ban antenna

LED Indicator

GPS(blue), GSM(green), Power(red)

Operating Voltage


Operating Temperature


Operating Humidity


Built-in Battery

450mAh/3.7Vindustrial lithium polymer battery


4 hours


98(L) ×52.0 (W) ×15.0 (H) mm



gps_track,track gps,tracking gps

YB09---3G Vehicle Tracker
*WCDMA+GSM network, High sensitive GPS chipset
*3000 points history trace can be saved without 3G coverage
*Tracking via SMS,Platform & Apps
*Built-in 450mAh battery for alarm
*Tele-cut off and restore oil/power
*SOS button for SOS alarm
*Geo-fence function
*Support ACC detection
*Vibration Alarm
*Voice Monitoring
*Displacement alarm

YB09 Feature list:

GSM Quad-band

GPS + GSM + GPRS wireless network

High sensitive GPS chipset

Real-time tracking

Built-in GSM & GPS antenna

Built-in ON / OFF power, wide voltage input range

Built-in acceleration sensor for vibration alarm

Support ACC detection, real-time reporting car status

Built-in 450mAh battery for alarm when the power supply is disconnected unexpectedly

Tele-cut off (petrol / electricity) function

SOS button for SOS alarm

Voice monitor function

Built-in CPU, eliminating breakdown automatically

Three LED indicators: GPS - Blue; GSM - Green; Power - Red

Check location via platform

Real Time GPS Tracking

Asset’s position, speed, direction and route can be monitored in ‘real-time’ and displayed on a user-friendly map user interface. The user interface also display all other related data like address and Geo-fence name, and sensor status like engine status, digital input status and temperature.

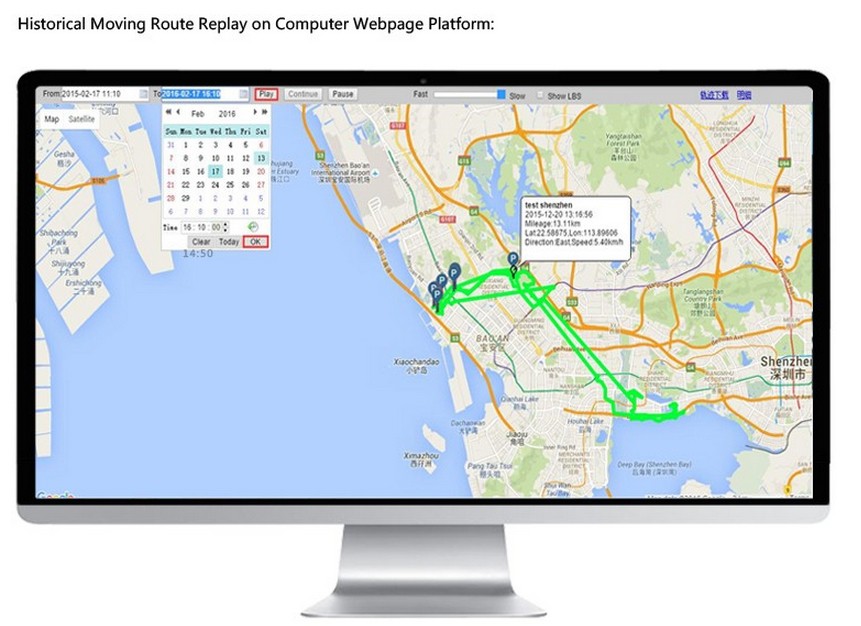

History Playback

Through a sophisticated web-based user interface, user could load and replay vehicle track on the past. This enables user to see and analyze the position and route taken by the vehicle.

Fleet Management

Each asset or vehicle could be grouped into fleets based on its location, function, project or other criteria. Administrator can assign each user to monitor some specified fleets so he/she could not be able to see other fleets which are not assigned to him/her.

Trip Analyzer

YueBiz Track analyze vehicle’s trip automatically based on engine start and stop location. The Trip Report include start-top location, distance, travel time and average speed of each trip.

For mixer truck, YueBiz Track can also analyze it’s trip based on loading and unloading location.

Vehicle Security

Real-time monitoring make our customer know where is their vehicle, where it goes and what it do, anytime. This certainly make the vehicle much more secure, especially from thefts threat.

As other option is to install an ignition cut off module which can be activated remotely using our system. This can be very useful when a vehicle is stolen and we want to make sure the vehicle cannot be turned on when it stop. Panic button can also be installed to enable driver alert central office when he/she get a trouble.

Driver Safety

YueBiz Track automatically record and analyze every driver performance and behaviors based on vehicle speed, harsh acceleration and harsh breaking event. This information could be helpful to monitor and to educate every drivers to make they drive more safely. when a vehicle exceeding a maximum speed,will activate the over-speed alarm .YueBiz Track can automatically send alert to supervisor via SMS or email when a vehicle is over-speeding.

        Use our Vehicle Tracking Devices and get Valuable Protection in the case of Vehicle Theft and Recovery. With the help of Vehicle Tracking , you can track bus, auto, car or any other vehicle .Live tracking in real time means being able to view your vehicle or asset with an exact location and GPS co-ordinates. Not only is this a powerful tool allowing you and your business to be more efficient but you have access to this service from your smart phone, tablet or computer.

        The system is designed as an automatic fully electronic logbook, which will record every journey a vehicle makes, where it started from, the route travelled, at what speeds, where it went to and for how long it had stopped before starting the next journey. The system includes PC software and mapping, so it is not necessary to login to a slow and tedious website, as all the calculations, routes, maps, graphs, reports, printouts etc are done right here on your own PC.
