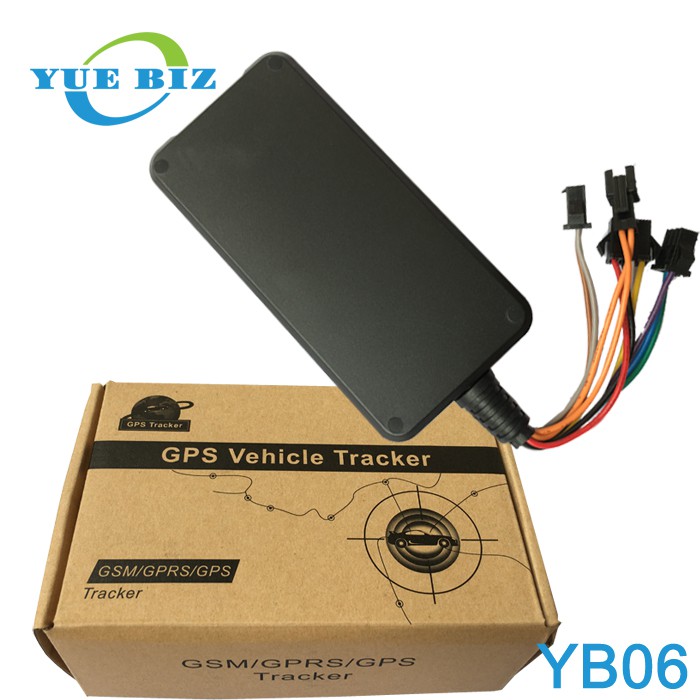

GPS Tracker for fleet management/logistic/Insurance cars- YB06

Product name : GPS Tracker for fleet management/logistic/Insurance cars
Category :  Vehicle GPS Tracker
Product No. : YB06
Online Inquiry         Email Us
Quick Details
Type:
Gps Tracker
Use:
Automotive
Screen Size:
None
Function:
Oil cte off, Voice Monitor etc.
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
YUEBIZ
Model Number:
YB06
Warranty:
13 Months
Product name:
Vehicle GPS Tracker
Color:
Black
Application:
Real-time Tracking
Certificate:
CE ROHS
Weight:
96g
Battery:
450mAh
Feature:
SOS Alarm
Platform:
www.yuebiz.com
Voltage:
9-36V
Network:
GSM/GPRS 850/900/1800/1900MHz

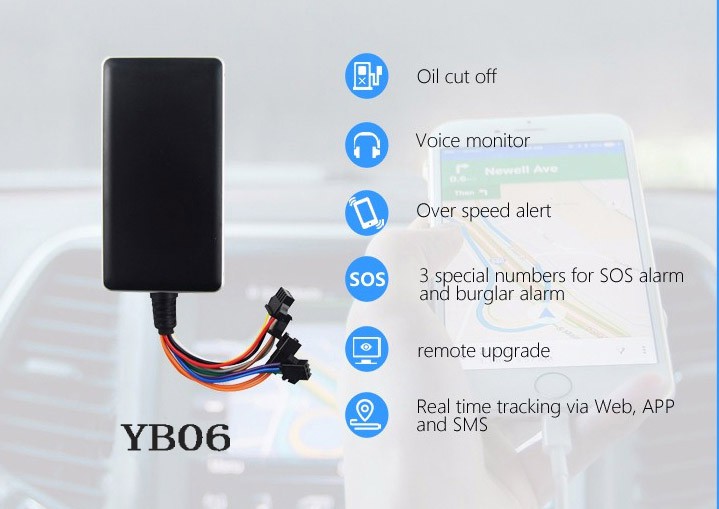

YB06 Specifications List:

1. Newest generation u-blox GPS chipset u-blox 7
2. Built-in GPS/GSM antenna,Quad band
3. Buit in battery (450mAh)
4. GPS chipset with high sensitivity, High integration density
5. Wide range power input 9-36V
6. 3000 points history trace can be saved without GSM coverage
7. Quick GPS fixed with Assist-GPS technology
8. Real time tracking via Web, APP and SMS
9. Built-in vibration sensor, perform vehicle intelligent robbery protection
10. ACC detection, to upload status of vehicle operation
11. Oil cut off
12. Voice monitor
13. Over speed alert, Vibration alert, Power cut off alert, Low battery alert, Geo-fence alert
14.3 special numbers for SOS alarm and burglar alarm
15. SOS alarm button for emergency call

GPS Tracker
vehicle tracker
vehicle tracking
GPS Tracking
Fleet tracking solution
GPS Tracking solution
gps tracker vehicle
gps tracking device
automic vehicle locators
bus tracking services
gps tracker for car
security tracking services
vehicle gps tracker supplier

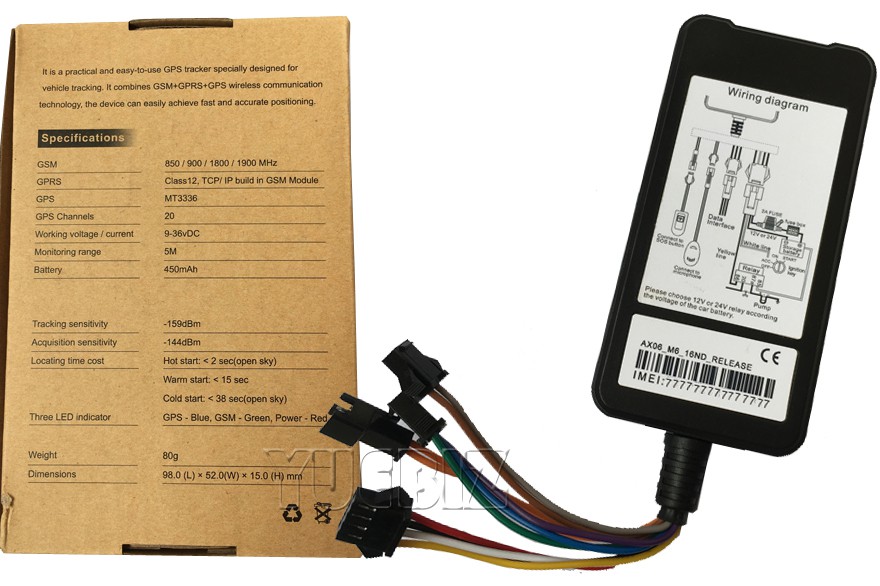

Item

Specifications

Voltage input range

9-36 VDC

LED indicator

Three LED indicator: GPS-blue, GSM-green, Power-red

Dimensions

98.0(L)× 52.0(W)× 15.0(H)mm

Weight

80g

Operating temperature

-25°C to +70°C

Operating humidity

5% to 95% non-condensing

GSM

850/ 900/ 1800/ 1900 MHz

GPRS

Class12,TCP/ IP build in GSM Module

GPS

SIRF Star III

GPS Channels

20 channel

Tracking sensitivity

-159dBm

Acquisition sensitivity

-144dBm

Antenna

Built-in GSM quad band antenna, GPS high gain antenna

Battery

500mAh

Monitoring range

5M

Hot start

<2 sec(open sky)

Warm start

<15 sec

GPS Tracker manufacturer

YB06 GPS vehicle tracker web tracking Check location information via SMS and GPRS


YB06 Main functions:

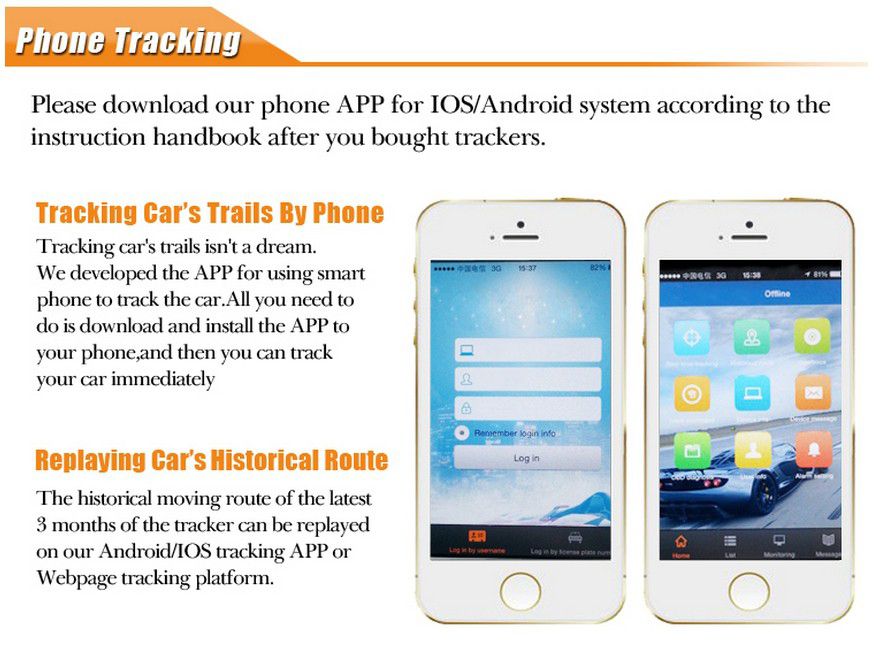

1 Real time tracking by Android&IOS APP,and PC also.

2 SOS button for emergency alarm

3 Voice Monitoring

4 Cut off oil& electric function

5 Over-speed alarm

6 Vibration alarm

7 Low battery alarm

8 Cut Off Alarm

9 Geo-Fence Alarm


The specification of YB06:

GSM Frequencies:850/900/1800/1900MHz

GSM/GPS Antenna: Build-in design

Support ACC detection

Build-in acceleration sensor for vibration alarm

Mileage report

Power supply unexpectedly disconnected alarm

Dimensions:106(L)*54(W)*16(H) mm

Weight:96g

Backup Battery:450mAh/3.7V  Standby time: 4 hours

Cut off (petrol/electric)only speed less than 20Km/H


Real Time GPS Tracking

Asset’s position, speed, direction and route can be monitored in ‘real-time’ and displayed on a user-friendly map user interface. The user interface also display all other related data like address and Geo-fence name, and sensor status like engine status, digital input status and temperature.

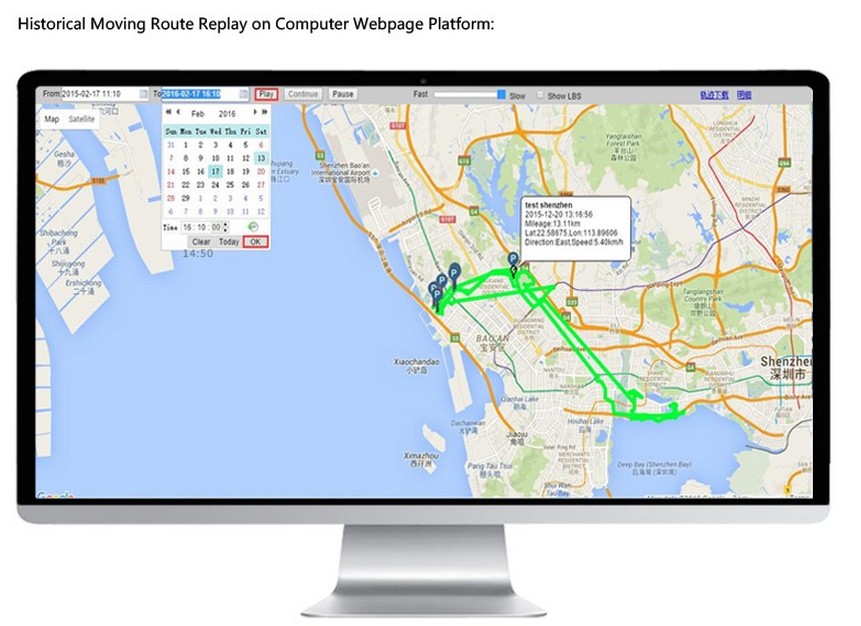

History Playback

Through a sophisticated web-based user interface, user could load and replay vehicle track on the past. This enables user to see and analyze the position and route taken by the vehicle.

Fleet Management

Each asset or vehicle could be grouped into fleets based on its location, function, project or other criteria. Administrator can assign each user to monitor some specified fleets so he/she could not be able to see other fleets which are not assigned to him/her.

Trip Analyzer

YueBiz Track analyze vehicle’s trip automatically based on engine start and stop location. The Trip Report include start-top location, distance, travel time and average speed of each trip.

For mixer truck, YueBiz Track can also analyze it’s trip based on loading and unloading location.

Vehicle Security

Real-time monitoring make our customer know where is their vehicle, where it goes and what it do, anytime. This certainly make the vehicle much more secure, especially from thefts threat.

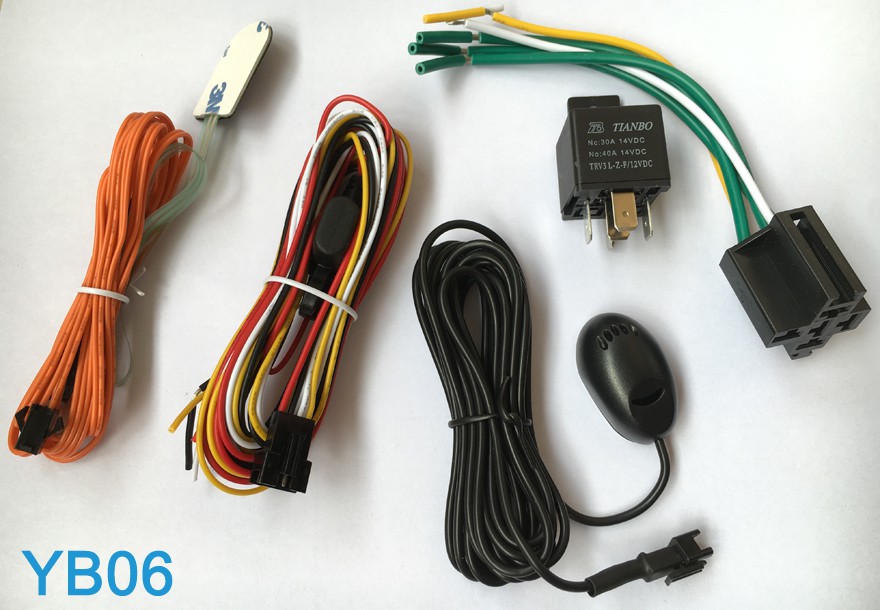

As other option is to install an ignition cut off module which can be activated remotely using our system. This can be very useful when a vehicle is stolen and we want to make sure the vehicle cannot be turned on when it stop. Panic button can also be installed to enable driver alert central office when he/she get a trouble.

Driver Safety

YueBiz Track automatically record and analyze every driver performance and behaviors based on vehicle speed, harsh acceleration and harsh breaking event. This information could be helpful to monitor and to educate every drivers to make they drive more safely. when a vehicle exceeding a maximum speed,will activate the over-speed alarm .YueBiz Track can automatically send alert to supervisor via SMS or email when a vehicle is over-speeding.

         Use our Vehicle Tracking Devices and get Valuable Protection in the case of Vehicle Theft and Recovery. With the help of Vehicle Tracking , you can track bus, auto, car or any other vehicle .Live tracking in real time means being able to view your vehicle or asset with an exact location and GPS co-ordinates. Not only is this a powerful tool allowing you and your business to be more efficient but you have access to this service from your smart phone, tablet or computer.


        The system is designed as an automatic fully electronic logbook, which will record every journey a vehicle makes, where it started from, the route travelled, at what speeds, where it went to and for how long it had stopped before starting the next journey. The system includes PC software and mapping, so it is not necessary to login to a slow and tedious website, as all the calculations, routes, maps, graphs, reports, printouts etc are done right here on your own PC.
